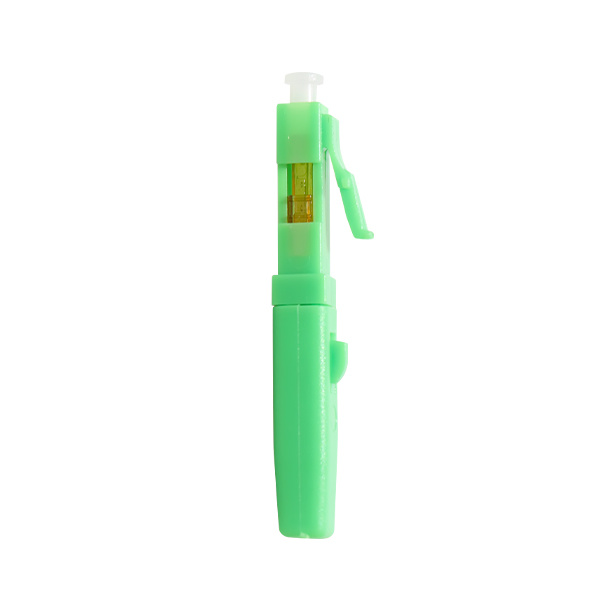

Fast Connector

Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material . With embedded optical fiber type structure . Installed with high quality and high success rate and fast and other characteristics .It Can be reused and easy to carry

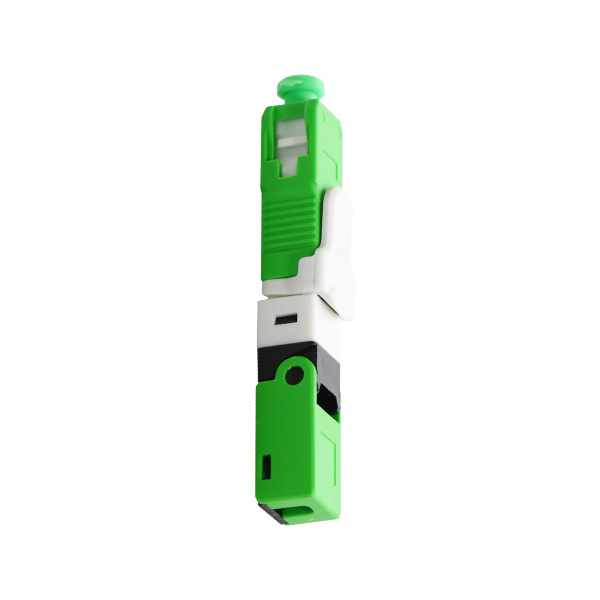

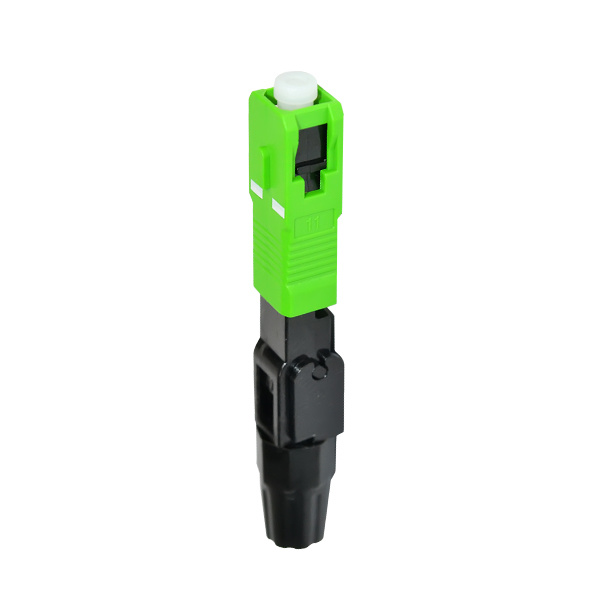

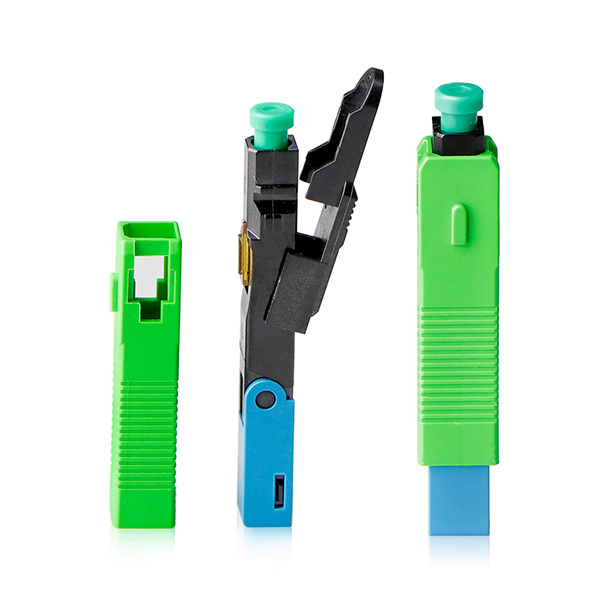

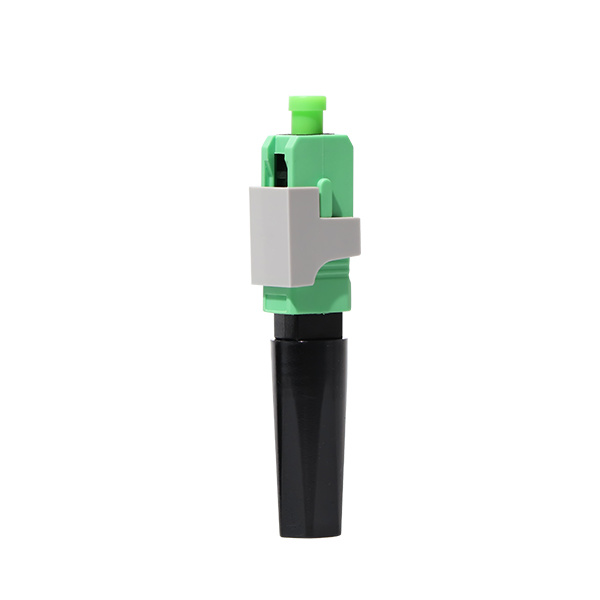

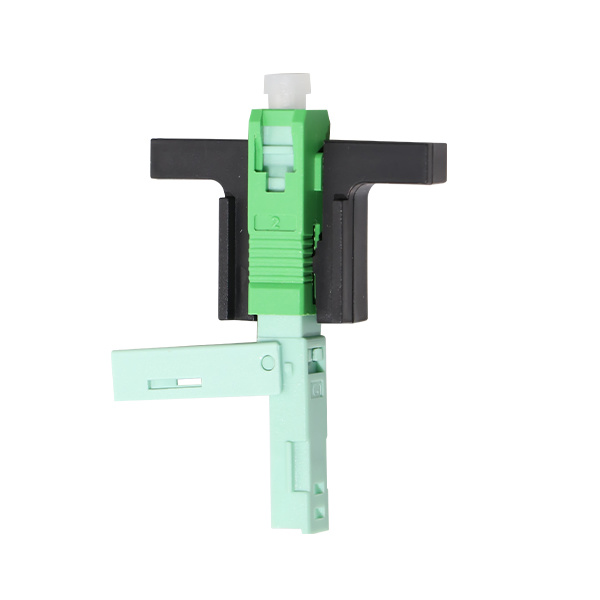

SC-1

SC-2

SC-3

SC-4

Fast Connector

APPLICATIONS

Used to open the FTTH fiber terminal end.

In the box, cabinet, such as wiring into the box.

Off the back of the accidents such as fiber, maintenance.

LAN, wan, data and video transmission.

The construction of the fiber end user access and maintenance.

Optical fiber access of mobile base station.

FEATURES

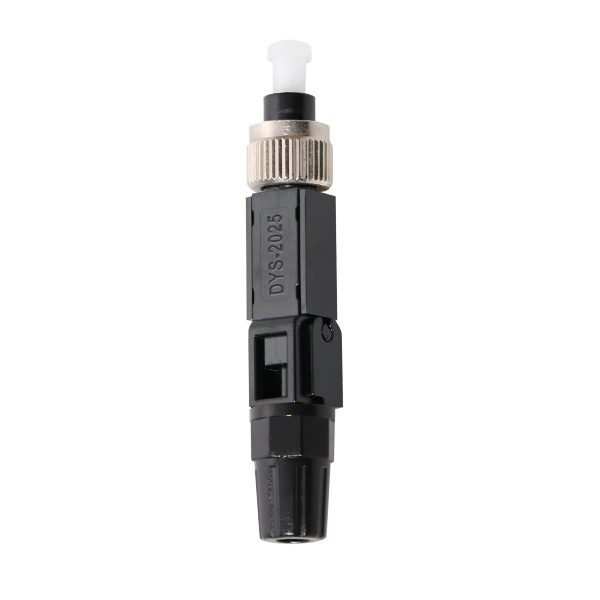

Single fiber, SC/LC/ST/FC-based connector

In-line connection available

Operating temperature: -40° to 85°C

Cable Diameter Range: 2.0mm, 3.0mm, 2.0*3.0mm

PRODUCT PARAMETERS

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.35dB	≤0.15	≤0.35dB	≤0.05	≤0.3dB
Return loss	≥45dB		≥55dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃
