产品名称: Optical Fiber Mechanical Splice
上市日期:2019-05-03
  • Overview
  • 产品规格
  • 详细参数

Genuine special OMS-02 indoor cable cold splice indoor cable docking special telecommunication line.


Applying patent of self-developed technology - The alloy V groove design, fiber Pre Embedded field assembly connection, the dual end polish, the special preservation techniques of refractive index (matching) liquid, the splicer is of high accuracy(98%), high strength(100N), great stability(insert loss<0.1db, return loss>50dB) and durable life(10 years).



OMS-02 is developed from DYS which is also the first to apply the V groove thechnologies and the side-cover stype in world, the first to be verified by TLC Certification and National Standard Test in China, awarded several national and international patent of invention and patent of utility model,higher than the national standards(Q/YTA 328-2008)



APPLICATION

  • Fiber to the home (FTTH)

  • FTTx, Connectingup Renovation of Computer/controlling Room

  • Fiber room line transformation



PRODUCT DESCRIPTION

  • Application for cable subscriber troubleshooting

  • Precision metallic alloy components with co-axial self centering, excellent and durableoptical property

  • Axially firm fitting of optical fibers, reducing any performance degradation due to loss inthe matching gel

  • Uninterrupted fitting and connecting technology, hence signals are free of impact fromexternal force

  • The naked fiber, tight buffer and cable, etc., can fully meet the environmentalrequirements from the terminals customer

  • Integrated protection of the casing to withstand harsh outdoor environment

  • High success rate and easiness in installation with average splicing time of 150 sec

  • Lock and open fiber optic on the mechanical splicer

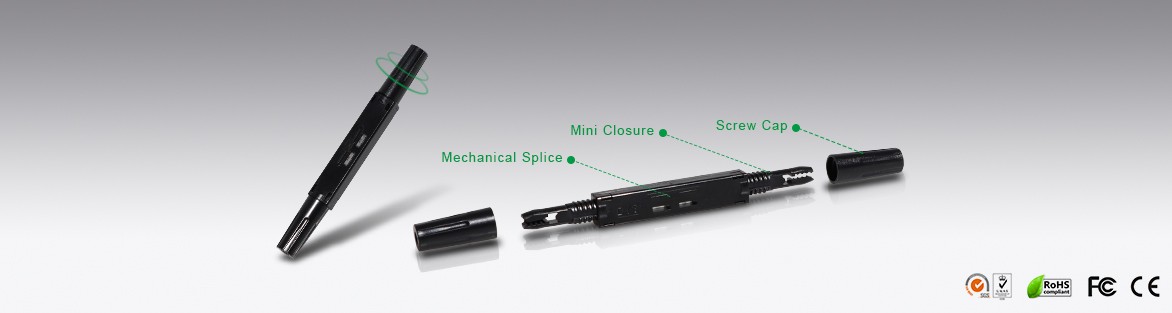

PRODUCT PHOTOS


Optical Fiber Mechanical SpliceOptical Fiber Mechanical Splice
Optical Fiber Mechanical Splice
H Optic (SC/APC) Outdoor Cable Assemblies



PRODUCT PARAMETERS



ITEM

Technical Parameters

Applicable for

2,2mmx 3,2mm ± 0,2mm

Dimensions Mechanical splice (mm)

38x7x4

Dimensions mini closure (mm)

95x10x7.5

Optical fiber standard

G652D & 657A1 or option

Tight buffer diameter

250μm & 900μm

Fiber mode

Single mode or Multi mode

Insert loss

≤ 0.15dB

Return loss

≥ 50dB

The success rate

>98%

Standard

IP54

The number of assembly

≥10 times

Fastening strength of naked fiber

≥3N

Tensile strength

≥40 N

Using temperature

-100C~+60℃

Operating Wavelength

1310nm, 1490nm, 1550nm

Lifespan

≥10 years
